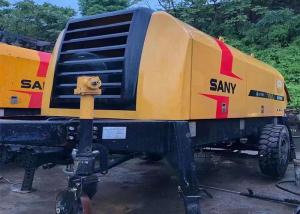

Concrete Pumping Machine Diesel Engine 80m3/H Stationary Concrete Trailer Pump
Features:
Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.
Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.
Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.
Reduce maintenance costs
Full hydraulic commutation system, deleting four parts extremely damageable in the electronic commutation system, reduces equipment maintenance costs.
| Product name | Concrete Stationary Pump | | Brand Name | SANY | | Dimension(L*W*H) | 6900*2000*2700mm | | Power(W) | 160KW | | Weight | 7300KG | | Certification | ISO90001.SAE | | Warranty | One Month | | Power Type | Diesel | | Max delivery pressure: | 18MPa | | Concrete output | 80m^3/h | | Type | S valve | |
Packagings
The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box.
Q1: Can we print the LOGO on products?
A: Yes, the OEM is available with the permission of our customers.
Q2: What is your payment term?
A: T/T or L/C,if you want any other way,please contact us.
Q3: what is your main market?
A: Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, North America, South America, and so on.
Q4: If products have some quality problem, how would you deal with?
A: We will be responsible for all the quality problems.
