Building Machine Concrete Pumping Capacity 30m3/H New Concrete Mixer With Pump
Product Introduction

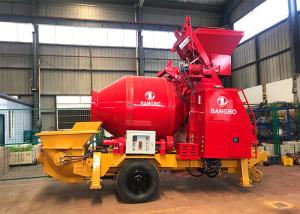

JBT series electric mobile concrete mixer with pump is combines the concrete mixer and concrete pump together, achieving integration of pump station. It is most suitable for the houses and commercial buildings under 10 floors, small bridges, water conservancy, power and communication for which the sites are scattered and on-site mixing is required.
Techincal Parameter of BANGBO Concrete Mixer Pump
| DISTRIBUTE VALVE | S value |
| Theoretical output | 40 CBM per hour |
| Actual output | 25 CBM per hour |
| Max Pressure | 8Mpa |
| Delivery Cylinder | 200MM |
| Oil tank capacity | 170L |
| Drum rotary speed | 15r/m |
| Diameter of drum | 1440mm |
| Engine brand | weicai , cummins, can be customized. |
| Total Power | 62kw |
| Max dia.of aggregates | Cobble:40,macadam:30 |
| Outline dimension(L*W*H) | 5100*2200*3100 mm |
| Total weight | 5500 kg |
| Outlet opening Diamater | 180MM |
| Product Keywords | mixer machine 0.5m3,automatic concrete mixer,js500 concrete mixer |
PACKAGING & DELIVERY
1, Standard export packaging by container, which should be applicable to international requirement.
2, Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
3, Special packing requirement from clients is available based on previous notice for Concrete Mixer with Pump.
Q5: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.
Q6: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q7: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
Q8: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. you can place the order by trade assurance,and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
